Lunkenheimer Mixers
Should there be any text here about the history of this building or what a Lunkenheimer Mixer is (for those of us who don't know) or is it just something anyone who goes to your page would know?

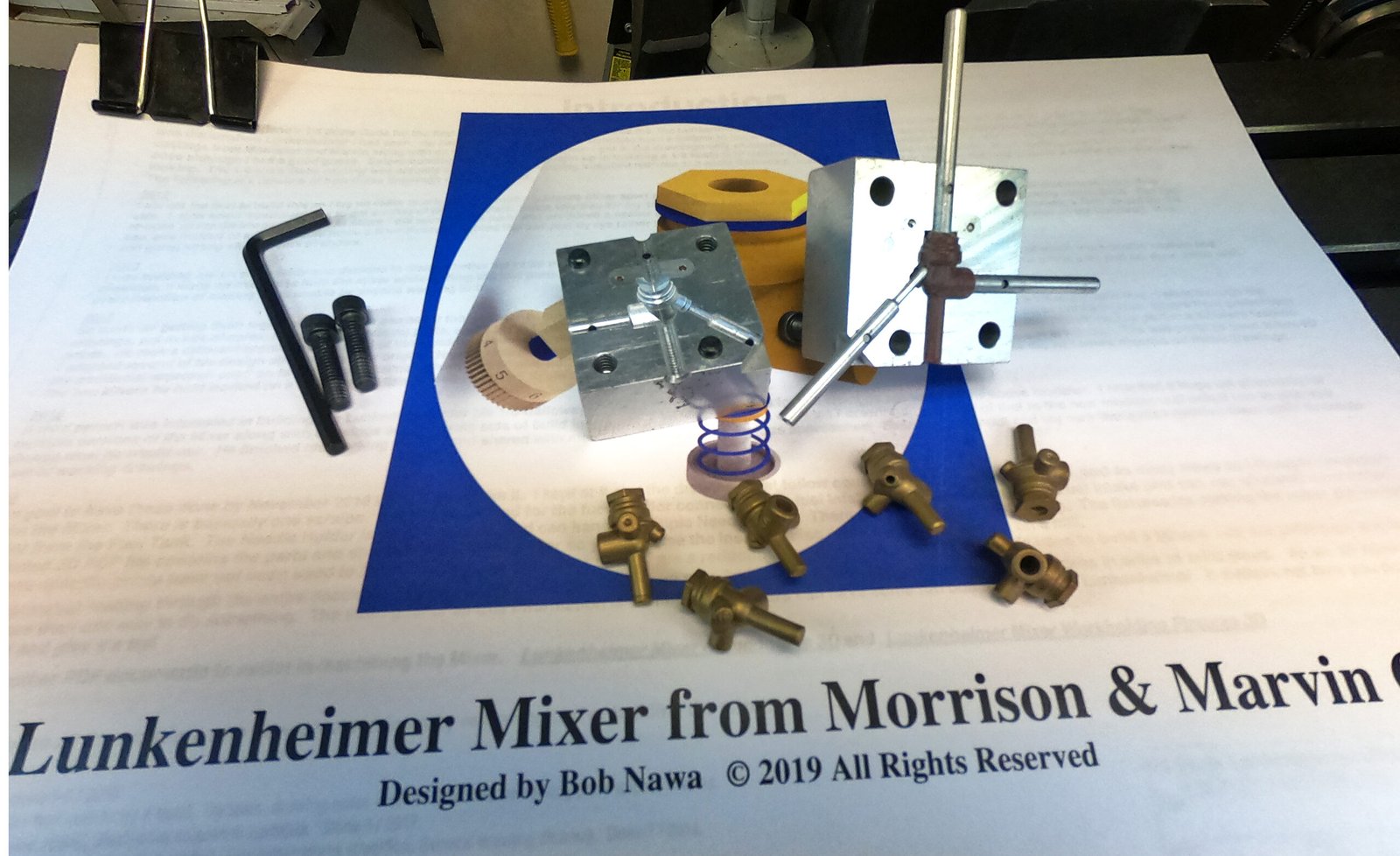

1/4 Scale Lunkenheimer Mixer
from Morrison & Marvin Casting
Designed by Bob Nawa
@2019 All Rights Reserved
"Exact Quarter Scale Investment Cast 3/4" Lunkenheimer"
I scaled the Model "C" Gade engine years ago and cast a solid Lunkenheimer with plans to make a simple mixer that looked like a Lunkenheimer.
I did not consider a functional Lunkenheimer that small could ever be made. Along came Bob Nawa and made a working mixer for his engine.
Bob now offers his plans at no cost. Even if you never build a Lunkenheimer. you will learn tricks of fixture building and tiny machining. Download it now and enjoy learning the complex machining sequence from an expert.
Lunkenheimer castings are available on the order page.

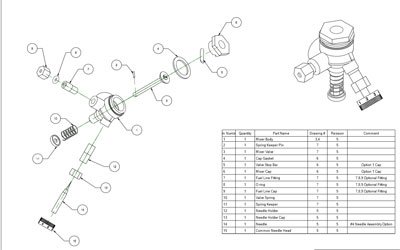

Lukenheimer Mixer Free Drawings
To open or download, click the image.
Lunkenheimer Mixer Workholding Fixtures 3D file

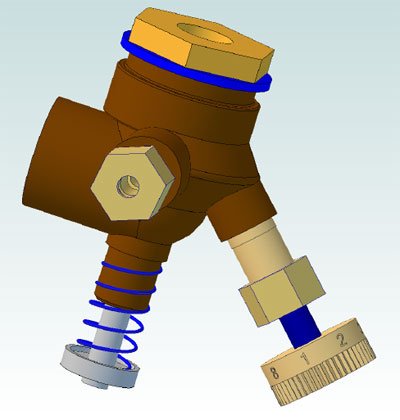

Lunkenheimer Mixer Components 3D file
If you are unable to view the 3-D image in your browser, try downloading the file first, then open it in the Adobe Reader client (instead of in your browser) You may have to right-click and specifically choose Adobe Reader as the application to open it with - Get Free Adobe Reader here
